Enhance Safety with
Suitable for ALL digital and analogue tachographs & speed limiters

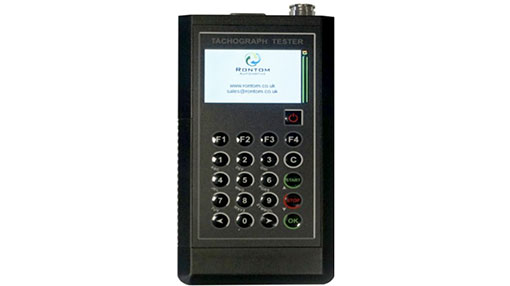

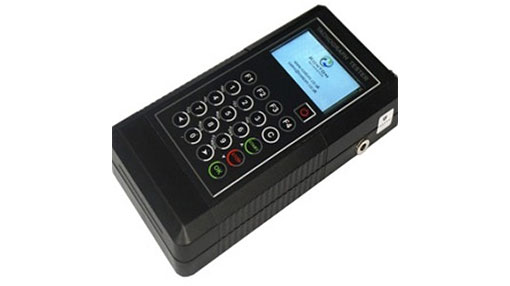

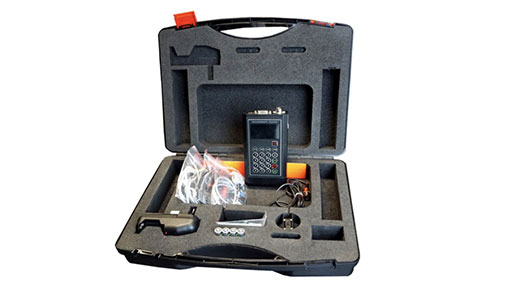

The CT2 Rolling Road Includes the CT2 Handheld Programmer & Tester
Suitable for ALL digital and analogue tachographs & speed limiters
&all connections to the CT2 Rolling Road Including braking system
* Suitable for ALL tachographs; Speedometers; Speed Limiters, etc *
Optional Extra

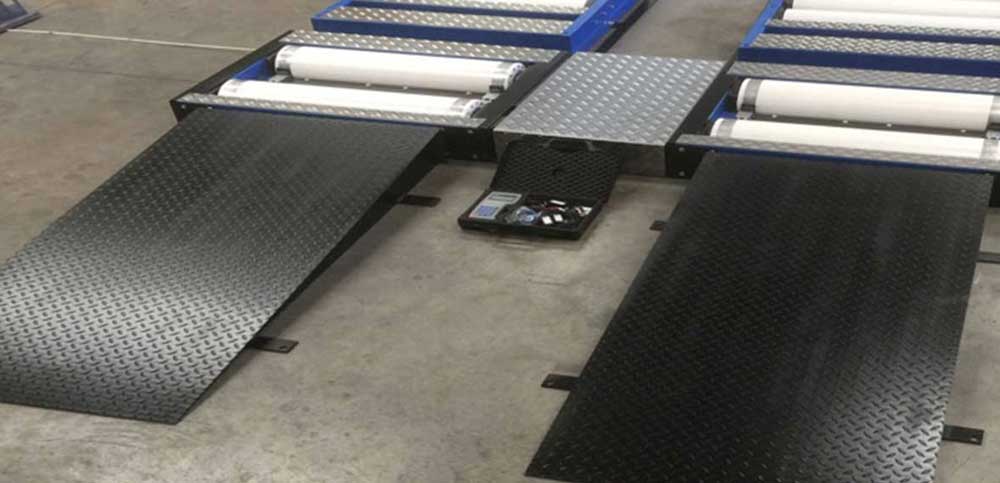

Approach Ramps (for surface mounted installations)
Rolling Road Installation Instructions:

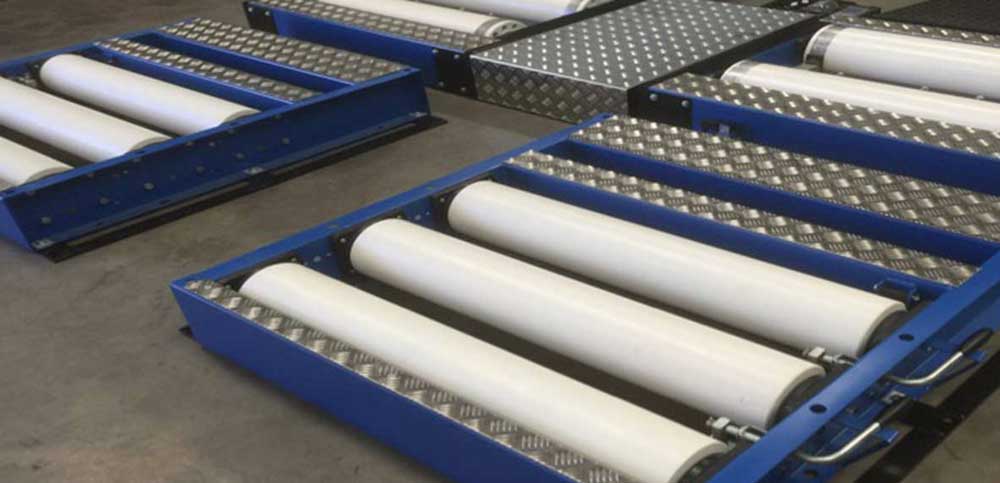

The Rolling road comes in 4 sections. Each section is bolted down individually.
Simply decide where it is to be located and bolt one front section down with 4 rawl bolts, supplied.
Use the centre plate, supplied, to position the other front section. Ensure both sections are square.
When happy with the positioning, bolt down with 4 rawl bolts, supplied.
The back set are the same but use 6 rawl bolts, supplied. A template bracket is used for positioning.

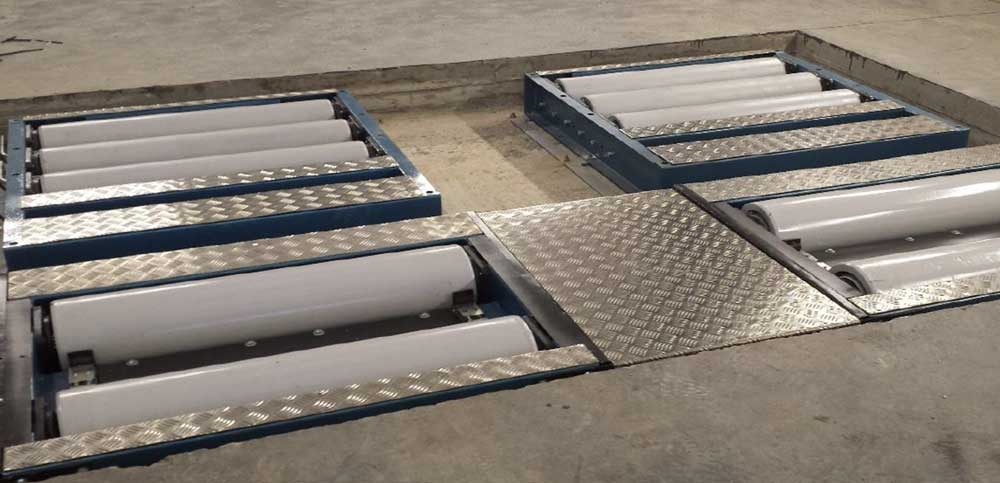

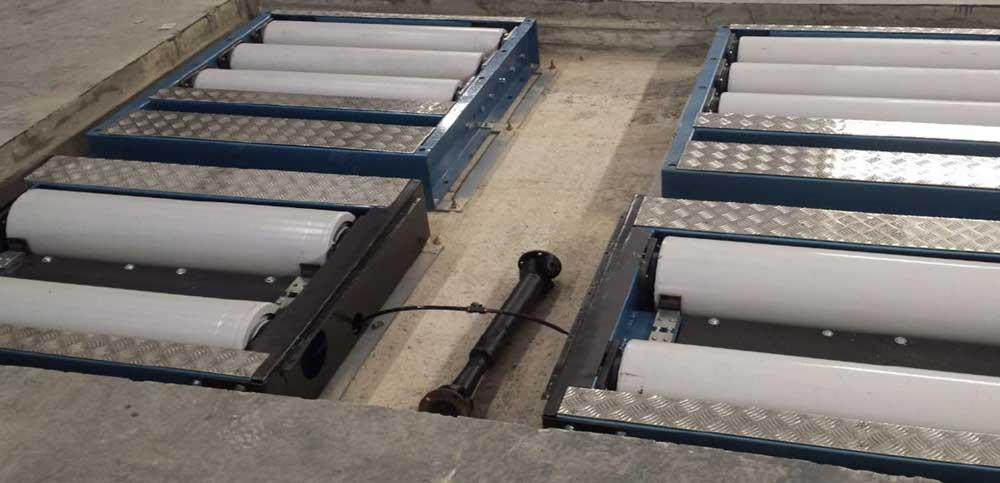

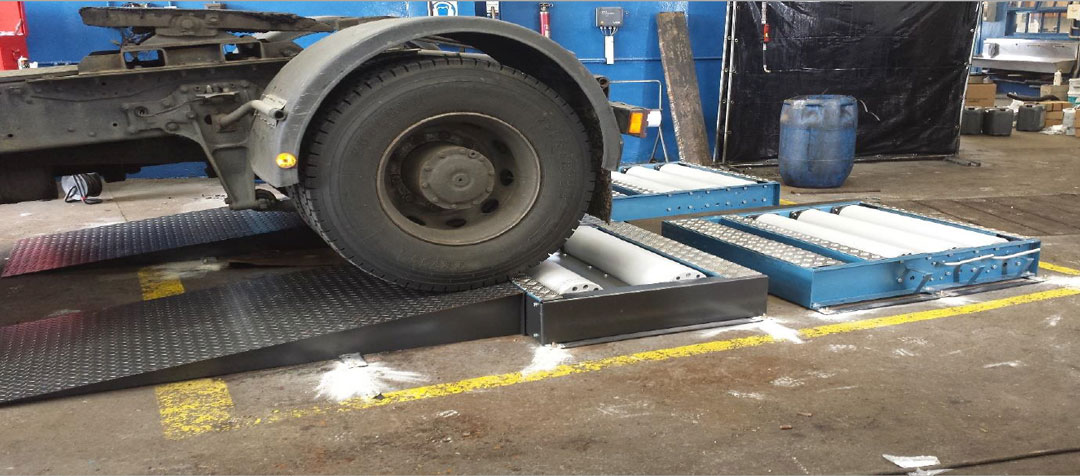

The CT2 Rolling Road can be installed above the ground surface (with approach ramps) or sunken below ground surface, as per the photographs.
- Rear set 1.2 metres x 1 metre x 240 mm high.
- Front set 1 metre x 1 metre x 240 mm high.
- Optional – Ramps – 1.9m (L) x 1.2m (W) x 0.3m (H)
- Front 2 sets on one pallet, banded and shrink wrapped.
- Back 2 sets on one pallet, banded and shrink wrapped
